The Effects Rack consists of number of buttons to activate the Effect, and an associated page to set the various parameters required for the effect. The more complex Effects are computationally intensive, how many can be simultaneously sustained in real time is dependant on you computer system.

The Mixing Desk has an Effects Rack available to each channel and bus.

Pre-Amp	Used to balance the Gains of the input signal, invert the signal, or mix the channels
High Pass Filter	Attenuate all frequencies below the cut-off frequency by 12dB/octave
Distortion	The Distortion Effect is provided to make your signal sound - well distorted
Enhancer	This provides harmonic enhancement by adding extra harmonics to the original sound, over-use produces distortion
Low Pass Filter	Attenuate all frequencies above the cut-off frequency by 12dB/octave

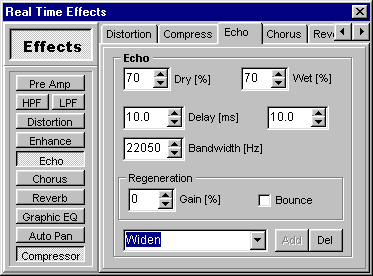

Echo	This provides a means of adding echo to the track [shown above]
Chorus/Flanger/Pitch Shifter	This provides a means of adding Chorus, Flange and Pitch Shift effects to the track
Reverb	This provides a means of adding Reverb effects to the track
Graphic Equaliser	The 10 band Graphic Equaliser works the same as a standard audio equalizer
Auto-Pan	Pan the output between the left and right channels at a slow periodic rate
Compressor	This provides a means of reducing the dynamic range of the signal, it can be set up as a Compressor or Limiter.
